Double-Sided OSP PCB

Home / Products / PCB / FR4 PCB / Double-Sided OSP PCB

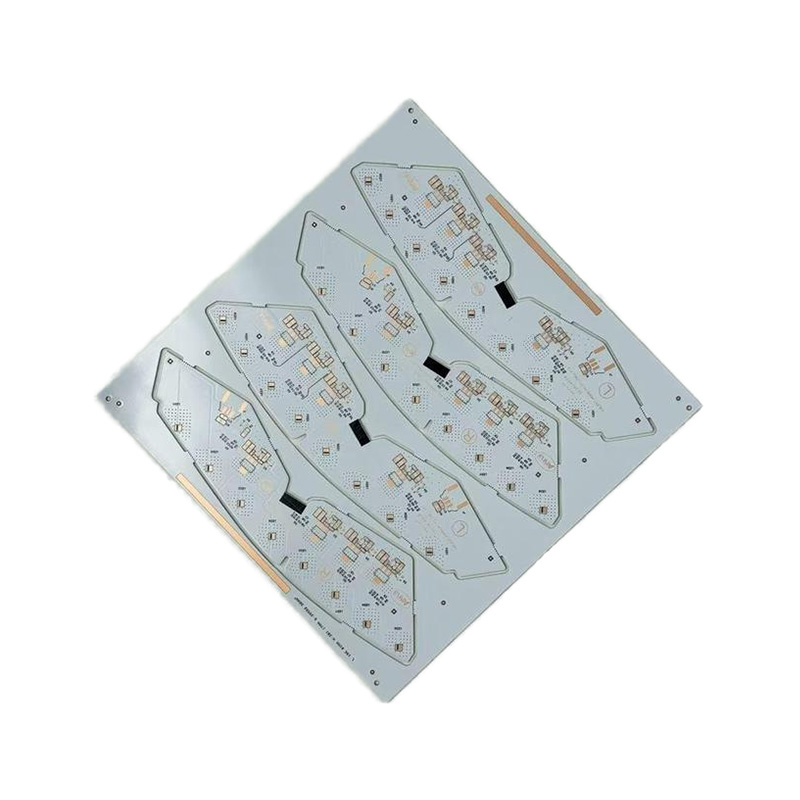

Double-Sided OSP PCB

FR4 PCBs utilize an epoxy resin fiberglass substrate, offering excellent mechanical strength, high-temperature resistance, and electrical insulation properties. They are the most commonly used standard circuit board in the electronics industry. They meet the UL94 V-0 flame retardancy rating and operate in a wide temperature range (-50°C to 130°C), making them suitable for high-frequency, high-reliability applications such as power supplies, industrial control systems, automotive electronics, and communication base stations. FR4 offers a cost-effective material with mature processing technology, supporting single-sided, double-sided, and multi-layer designs. They meet the demands of both conventional consumer electronics and demanding industrial environments, making them the preferred substrate for electronics manufacturing.

Contact Us
PREV：No previous product NEXT：No next product
  • Specification
  • About Hongxin
  • Contact Us

Material

 FR-4

Supplier

 Shengyi

Thickness

 1.6mm

Finished Copper Thickness

 36µm

Surface Treatment

 OSP

Finished Dimensions

 200.1mm x 197mm
Anhui Hongxin Electronic Technology Co., Ltd. located in China P C B Industrial Park, Guangde Economic Development District, Anhui Province. Established in October 2 0 1 3, our factory occupied 2000 square meters and employs 158 staff members, including over 7 professional engineers with more than 15 years of experience. The company's P C B products include 1- 32 layer boards, high Tg boards, thick copper boards, rigid-flex boards, high- frequency boards, hybrid dielectric laminated boards, buried via boards, metal-based boards, and halogen- free boards. High-precision P C B rapid prototyping is available, with bulk orders for single and double -sided boards delivered within 6 - 7 days, 4 - 8 layer boards within 9 - 20 days, 10 - 16 layer boards within 20 - 25 days, 16 - 32 layer boards within 25 - 45 days, H D I boards within 25 days, and double- sided prototyping deliverable as quickly as 24 hours. We are committed to providing high-quality products and professional services to global customers, and we have the capability to deliver orders of both large quantities and small batches. The surface treatment processes of our products are complete. The base material types include FR-1, 22F, CEM-1, CEM-3, FR-4 (with high Tg, halogen-free, etc.), high-frequency boards, and metal substrates. All product types have passed ISO9001, ISO14001, ISO45001, IATF16949 international quality management system certifications and UL safety certifications. Our sales network extends from inland areas to Southeast Asia and Europe and America. In the fierce market competition, we have always received high praise from customers.
