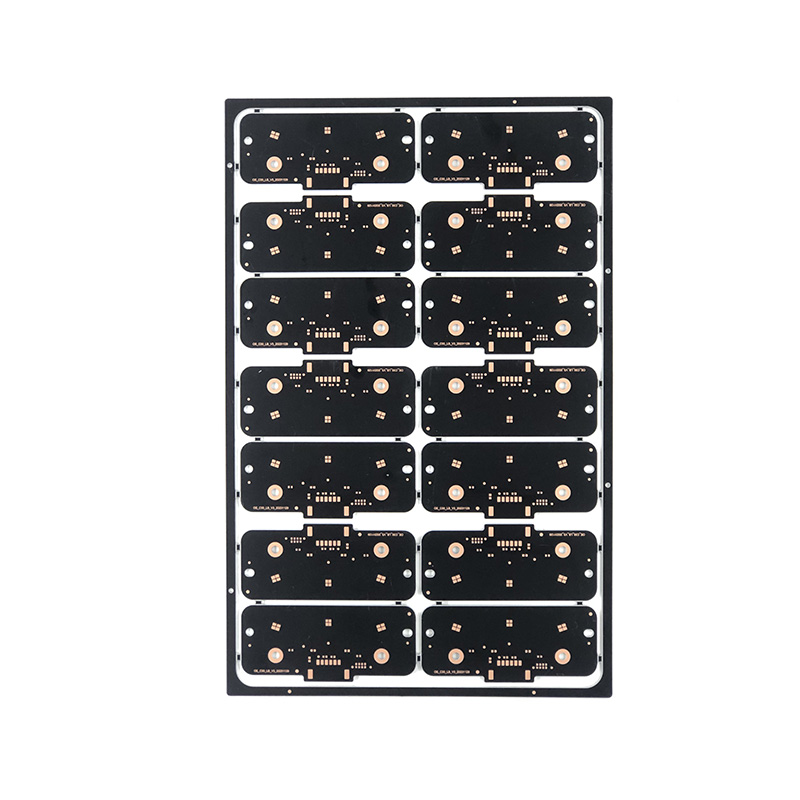

Double-Sided Black 0.3-6Mm OSP PCB Board
The double-sided black OSP PCB board is produced in batches using the laminated technology. The black solder mask layer is combined with OSP surface treatment, which not only ensures the stability of soldering and oxidation resistance, but also achieves line concealment through the matte black appearance, suitable for the structural design of small and precise electronic devices. The onboard precise pads and positioning holes layout supports efficient assembly of surface mount components, is compatible with the automatic production line soldering process, and the OSP process complies with environmental protection standards. The product is suitable for scenarios such as consumer small electronic modules and intelligent sensors, featuring high production consistency, excellent soldering yield, and a balance between appearance and practicality. It is a highly adaptable PCB solution for small and precise electronic products.
- Specification
- About Hongxin
- Contact Us
|
Material |
FR-4, aluminium base, ceramic, metal, copper base, high frequency, rigid-flex combined, halogen-free |
|
Board thickness |
0.3 - 6mm |
|
Copper thickness |
0.5oz - 5oz |
|
Number of layers |
1 - 32 layers |
|
Origin |
Anhui, China |
|
Surface treatment |
Ordinary tin plating, lead-free tin plating, OSP, nickel/gold plating, blue tape, silver plating, tin plating |
|
Minimum hole diameter |
0.25mm |
|
Minimum line width |
3mil (0.075mm) |
|
Minimum line spacing |
0.075mm |
|
Ratio of board thickness to hole diameter |
10:8 |
Product Overview
A double-sided black OSP PCB board is a two-layer printed circuit board manufactured by lamination pressing, with a matte black LPI solder mask and an OSP (Organic Solderability Preservative) surface finish on exposed copper pads. The matte black appearance visually conceals circuit traces for a clean, compact appearance. Board thickness can be customized within 0.3-6 mm, and the board is compatible with automated SMT production lines. The OSP treatment is heavy-metal-free and meets environmental regulations. Thickness, substrate grade, and assembly and storage conditions should be confirmed against the customer's design files and engineering review.
Typical Applications
- Miniature consumer electronic modules
- Smart environment sensors
- Wearable compact electronic devices
- Household mini smart-control units
- Automotive non-safety auxiliary small modules
Key Features
- Matte black solder mask conceals traces for a neat appearance
- OSP provides stable solderability and basic anti-oxidation protection, heavy-metal-free
- Customizable board thickness from 0.3 mm to 6 mm
- Accurate pad and positioning-hole layout compatible with automated SMT lines
- Stable lamination process ensures good batch consistency for mass production
- RoHS and REACH compliant
FAQ
Q: What thickness options are available for this double-sided black OSP PCB?
A: Board thickness can be customized within 0.3-6 mm, covering ultra-thin, standard and extra-thick board solutions.
