Double-Sided Matte Blackened Gold Plate

Home / Products / PCB / Double-sided PCB / Double-Sided Matte Blackened Gold Plate

Double-Sided Matte Blackened Gold Plate

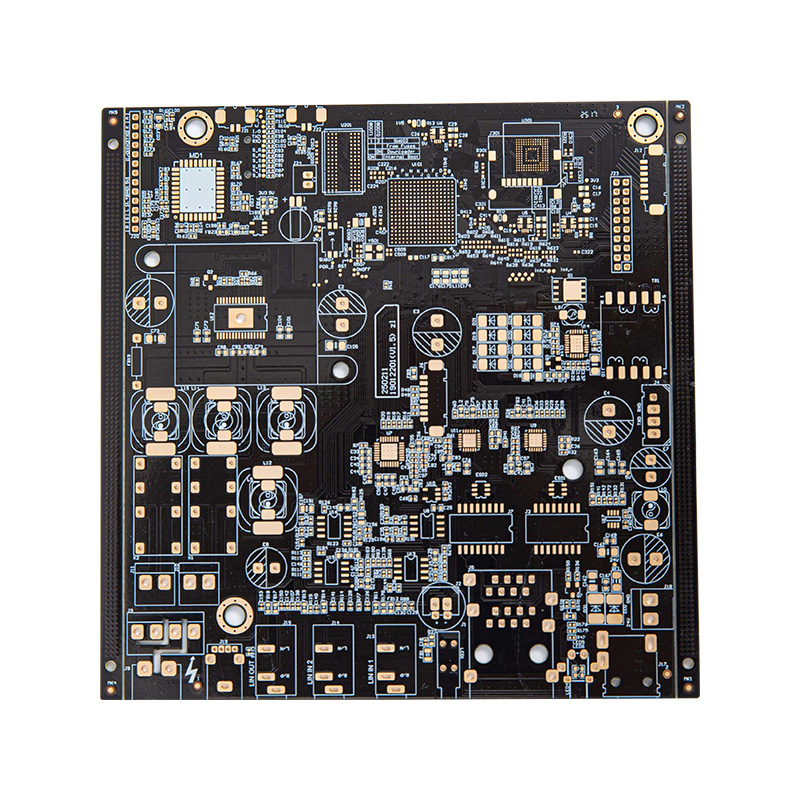

Double-sided blackened gold plated board, featuring advanced black solder mask technology combined with double-sided gold plating treatment. The black surface presents a fine matte texture, offering both high appearance quality and line concealment. It effectively avoids reflection interference and is suitable for visualization scenarios of precision electronic devices. The gold plating layer has excellent electrical conductivity, is resistant to oxidation, wear-resistant, and has low contact resistance, ensuring high-frequency welding and long-term stable operation. The double-sided circuit layout supports streamlined and efficient functional design, with precise control of line width and spacing down to fine specifications. It is compatible with surface mount and through-hole mixed packaging and is suitable for integration of various electronic components. Using high Tg FR-4 substrate, it undergoes rigorous reliability tests such as high and low temperature cycling and humidity aging, and is suitable for complex working environments. The product takes into account customization of appearance, performance stability, and process compatibility. Its core advantages focus on "gold plating durability + precise manufacturing". It is widely used in smart wearable devices, high-end communication modules, industrial detection instruments, etc., and is a high-quality PCB solution that balances appearance quality and practicality and meets the requirements of mid-to-high-end electronic devices.

Contact Us
PREV：Double-Sided Blue Gold Plating PCB NEXT：Double-Sided Black 0.3-6Mm OSP PCB Board
  • Specification
  • About Hongxin
  • Contact Us

Material

 FR-4, aluminium-based, ceramic, metal, copper-based, high-frequency, rigid-flex combined, halogen-free

Board thickness

 0.3 - 6mm

Copper thickness

 0.5oz - 5oz

Number of layers

 1 - 32 layers

Origin

 Anhui, China

Surface treatment

 Ordinary tin plating, lead-free tin plating, OSP, nickel/gold plating, blue tape, silver plating, tin plating

Minimum hole diameter

 0.25mm

Minimum line width

 3mil (0.075mm)

Minimum line spacing

 0.075mm

Ratio of board thickness to hole diameter

 10:7



Anhui Hongxin Electronic Technology Co., Ltd. located in China P C B Industrial Park, Guangde Economic Development District, Anhui Province. Established in October 2 0 1 3, our factory occupied 2000 square meters and employs 158 staff members, including over 7 professional engineers with more than 15 years of experience. The company's P C B products include 1- 32 layer boards, high Tg boards, thick copper boards, rigid-flex boards, high- frequency boards, hybrid dielectric laminated boards, buried via boards, metal-based boards, and halogen- free boards. High-precision P C B rapid prototyping is available, with bulk orders for single and double -sided boards delivered within 6 - 7 days, 4 - 8 layer boards within 9 - 20 days, 10 - 16 layer boards within 20 - 25 days, 16 - 32 layer boards within 25 - 45 days, H D I boards within 25 days, and double- sided prototyping deliverable as quickly as 24 hours. We are committed to providing high-quality products and professional services to global customers, and we have the capability to deliver orders of both large quantities and small batches. The surface treatment processes of our products are complete. The base material types include FR-1, 22F, CEM-1, CEM-3, FR-4 (with high Tg, halogen-free, etc.), high-frequency boards, and metal substrates. All product types have passed ISO9001, ISO14001, ISO45001, IATF16949 international quality management system certifications and UL safety certifications. Our sales network extends from inland areas to Southeast Asia and Europe and America. In the fierce market competition, we have always received high praise from customers.

Recommended Products

About
Anhui Hongxin Electronic Technology Co., Ltd.
Anhui Hongxin Electronic Technology Co., Ltd.
Anhui Hongxin Electronic Technology Co., Ltd. located in China P C B Industrial Park, Guangde Economic Development District, Anhui Province. Established in October 2 0 1 3, our factory occupied 8, 413 square meters and employs 158 staff members, including over 7 professional engineers with more than 15 years of experience. The company's P C B products include 1- 32 layer boards, high Tg boards, thick copper boards, rigid-flex boards, high- frequency boards, hybrid dielectric laminated boards, buried via boards, metal-based boards, and halogen- free boards. High-precision P C B rapid prototyping is available, with bulk orders for single and double -sided boards delivered within 6 - 7 days, 4 - 8 layer boards within 9 - 20 days, 10 - 16 layer boards within 20 - 25 days, 16 - 32 layer boards within 25 - 45 days, H D I boards within 25 days, and double- sided prototyping deliverable as quickly as 24 hours. We are committed to providing high-quality products and professional services to global customers, and we have the capability to deliver orders of both large quantities and small batches. The surface treatment processes of our products are complete. The base material types include FR-1, 22F, CEM-1, CEM-3, FR-4 (with high Tg, halogen-free, etc.), high-frequency boards, and metal substrates. All product types have passed ISO9001, ISO14001, ISO45001, IATF16949 international quality management system certifications and UL safety certifications. Our sales network extends from inland areas to Southeast Asia and Europe and America. In the fierce market competition, we have always received high praise from customers.
