Double-Sided Blue Gold Plating PCB

Home / Products / PCB / Double-sided PCB / Double-Sided Blue Gold Plating PCB

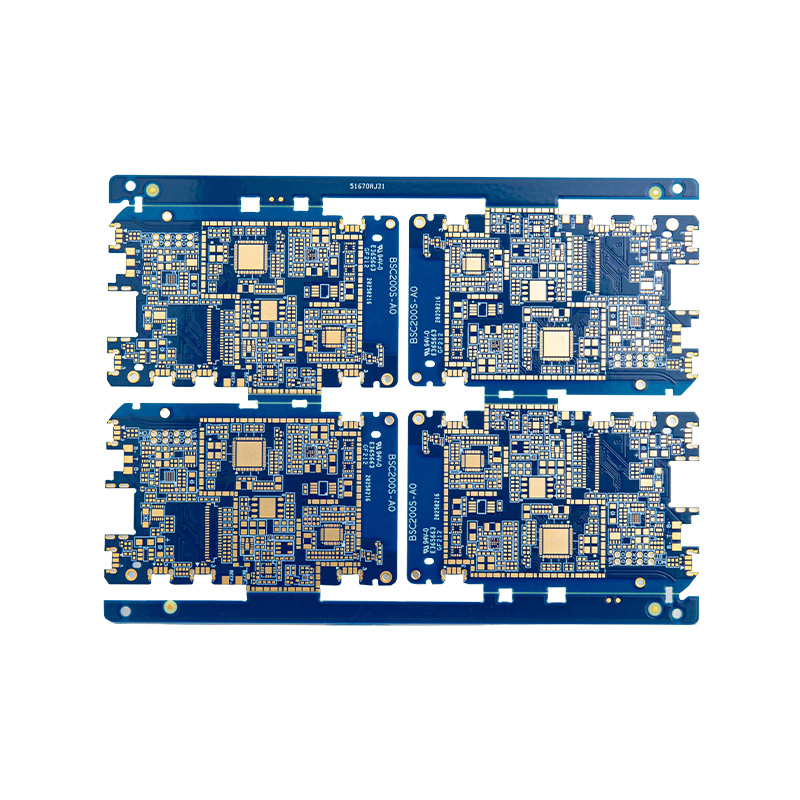

Double-Sided Blue Gold Plating PCB

Double-sided blue gold-plated boards, featuring a high-saturation blue solder mask layer combined with double-sided gold plating technology, have a unique blue appearance that combines visual recognition and product differentiation advantages. They are suitable for the appearance customization requirements of high-end electronic devices. The gold-plated surface has excellent electrical conductivity, resistance to oxidation and wear, which can ensure high-frequency welding and long-term stable operation, effectively reducing contact resistance and signal loss. The double-sided circuit layout supports streamlined functional design, with precise control of line width and spacing, and is compatible with surface mount and through-hole packaging, meeting the circuit requirements of small and medium-power electronic devices. The core advantages lie in the blue customized appearance, high reliability of gold plating, and the practical adaptability of the double-sided layout. They are widely used in smart wearable devices, high-end consumer electronic accessories, communication modules, etc., and are a high-quality PCB solution that balances appearance customization and practical performance.

Contact Us
PREV：Double-Sided Blackened Gold Plate NEXT：Double-Sided Matte Blackened Gold Plate
  • Specification
  • About Hongxin
  • Contact Us

Material

 FR-4, aluminium-based, ceramic, metal, copper-based, high-frequency, rigid-flex combined, halogen-free

Board thickness

 0.3 - 6mm

Copper thickness

 0.5oz - 5oz

Number of layers

 1 - 32 layers

Origin

 Anhui, China

Surface treatment

 Ordinary tin plating, lead-free tin plating, OSP, nickel/gold plating, blue tape, silver plating, tin plating

Minimum hole diameter

 0.25mm

Minimum line width

 3mil (0.075mm)

Minimum line spacing

 0.075mm

Ratio of board thickness to hole diameter

 10:4
Anhui Hongxin Electronic Technology Co., Ltd. located in China P C B Industrial Park, Guangde Economic Development District, Anhui Province. Established in October 2 0 1 3, our factory occupied 2000 square meters and employs 158 staff members, including over 7 professional engineers with more than 15 years of experience. The company's P C B products include 1- 32 layer boards, high Tg boards, thick copper boards, rigid-flex boards, high- frequency boards, hybrid dielectric laminated boards, buried via boards, metal-based boards, and halogen- free boards. High-precision P C B rapid prototyping is available, with bulk orders for single and double -sided boards delivered within 6 - 7 days, 4 - 8 layer boards within 9 - 20 days, 10 - 16 layer boards within 20 - 25 days, 16 - 32 layer boards within 25 - 45 days, H D I boards within 25 days, and double- sided prototyping deliverable as quickly as 24 hours. We are committed to providing high-quality products and professional services to global customers, and we have the capability to deliver orders of both large quantities and small batches. The surface treatment processes of our products are complete. The base material types include FR-1, 22F, CEM-1, CEM-3, FR-4 (with high Tg, halogen-free, etc.), high-frequency boards, and metal substrates. All product types have passed ISO9001, ISO14001, ISO45001, IATF16949 international quality management system certifications and UL safety certifications. Our sales network extends from inland areas to Southeast Asia and Europe and America. In the fierce market competition, we have always received high praise from customers.
