Double-Sided Blue Gold-Plated Sheet

Home / Products / PCB / Double-sided PCB / Double-Sided Blue Gold-Plated Sheet

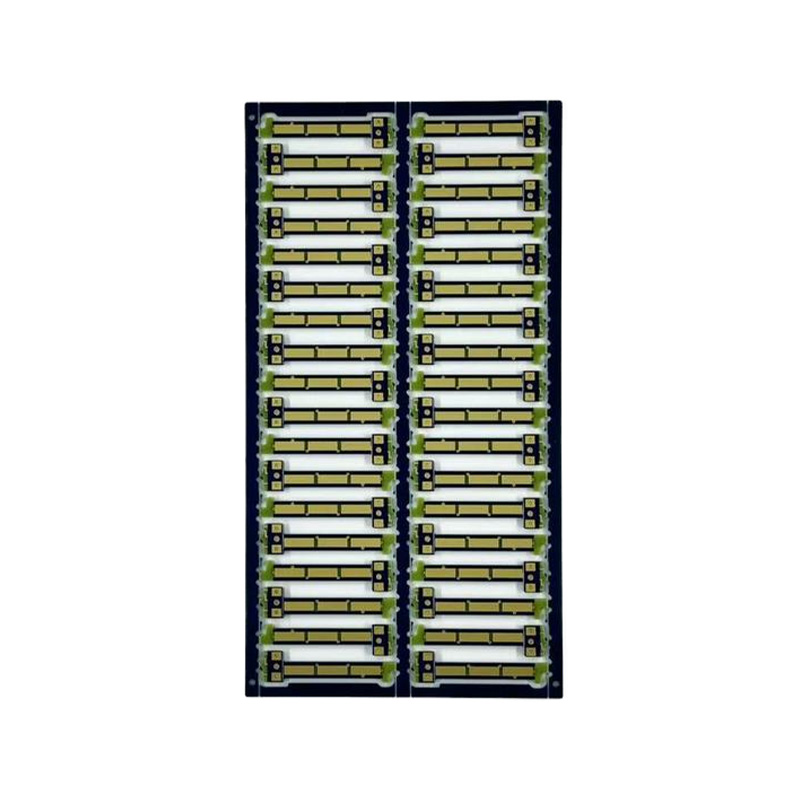

Double-Sided Blue Gold-Plated Sheet

Double-sided blue gold-plated board, using chemical gold plating technology, achieves ultra-flat pads while ensuring excellent signal transmission quality and can perfectly support the stable welding of fine-pitch component elements, effectively reducing the risk of short circuits. Its surface has a good nickel layer barrier effect, which can significantly inhibit copper migration and enhance the long-term reliability of the product in harsh environments. This board is an ideal carrier for applications such as communication radio frequency modules, precision medical electronics, high-end embedded systems, and high-speed digital circuits, which have extremely high requirements for signal integrity and long-term stability.

Contact Us
PREV：Double-Sided Green Lead-Free Soldered Board With FR-4 NEXT：Double-Sided Greenened Gold Plate
  • Specification
  • About Hongxin
  • Contact Us

Material

 FR-4, aluminium-based, ceramic, metal, copper-based, high-frequency, rigid-flex combined, halogen-free

Board thickness

 0.3 - 6mm

Copper thickness

 0.5oz - 5oz

Number of layers

 1 - 32 layers

Origin

 Anhui, China

Surface treatment

 Ordinary tin plating, lead-free tin plating, OSP, nickel/gold plating, blue tape, silver plating, tin plating

Minimum hole diameter

 0.25mm

Minimum line width

 3mil (0.075mm)

Minimum line spacing

 0.075mm

Thickness-to-diameter ratio of holes

 10:16
Anhui Hongxin Electronic Technology Co., Ltd. located in China P C B Industrial Park, Guangde Economic Development District, Anhui Province. Established in October 2 0 1 3, our factory occupied 2000 square meters and employs 158 staff members, including over 7 professional engineers with more than 15 years of experience. The company's P C B products include 1- 32 layer boards, high Tg boards, thick copper boards, rigid-flex boards, high- frequency boards, hybrid dielectric laminated boards, buried via boards, metal-based boards, and halogen- free boards. High-precision P C B rapid prototyping is available, with bulk orders for single and double -sided boards delivered within 6 - 7 days, 4 - 8 layer boards within 9 - 20 days, 10 - 16 layer boards within 20 - 25 days, 16 - 32 layer boards within 25 - 45 days, H D I boards within 25 days, and double- sided prototyping deliverable as quickly as 24 hours. We are committed to providing high-quality products and professional services to global customers, and we have the capability to deliver orders of both large quantities and small batches. The surface treatment processes of our products are complete. The base material types include FR-1, 22F, CEM-1, CEM-3, FR-4 (with high Tg, halogen-free, etc.), high-frequency boards, and metal substrates. All product types have passed ISO9001, ISO14001, ISO45001, IATF16949 international quality management system certifications and UL safety certifications. Our sales network extends from inland areas to Southeast Asia and Europe and America. In the fierce market competition, we have always received high praise from customers.
