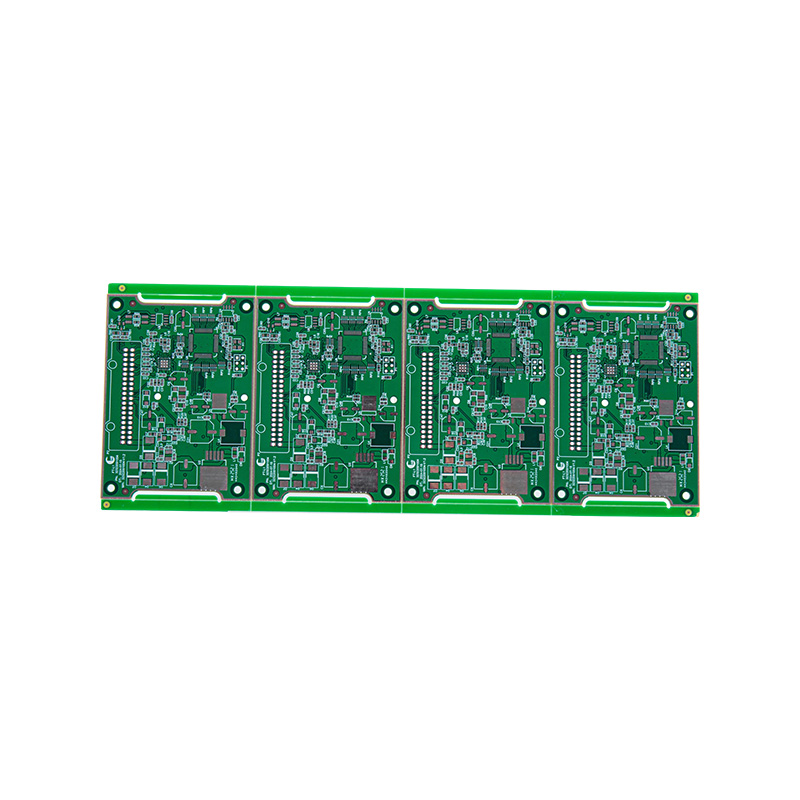

Double-Sided Green Lead-Free Soldered Board With FR-4

Double-sided green lead-free soldered board, featuring a high adhesion green solder mask layer combined with lead-free matte soldering process. The green appearance conforms to the common visual standards in the electronics manufacturing industry. The soldering surface undergoes special passivation treatment, forming a dense protective film, which effectively enhances the product's service life in outdoor and industrial environments. The board body is made of high Tg (170℃) flame-retardant FR-4 substrate, equipped with 1oz-2oz flexible copper thickness configuration. The circuit design supports 3mil/3mil fine line width and spacing, compatible with BGA, QFP and other precision packaging and mixed assembly with conventional through-hole components. It also has excellent anti-buckling performance. After undergoing -40℃ to 125℃ high and low temperature cycling tests, it maintains structural stability without any obvious deformation.

Contact Us
PREV：Double-Sided Green Lead-Free Solder Board NEXT：Double-Sided Blue Gold-Plated Sheet
  • Specification
  • About Hongxin
  • Contact Us

Material

 FR-4, aluminium-based, ceramic, metal, copper-based, high-frequency, rigid-flex combined, halogen-free

Board thickness

 0.3 - 6mm

Copper thickness

 0.5oz - 5oz

Number of layers

 1 - 32 layers

Origin

 Anhui, China

Surface treatment

 Ordinary tin plating, lead-free tin plating, OSP, nickel/gold plating, blue tape, silver plating, tin plating

Minimum hole diameter

 0.25mm

Minimum line width

 3mil (0.075mm)

Minimum line spacing

 0.075mm

Thickness-to-diameter ratio of holes

 10:15
Anhui Hongxin Electronic Technology Co., Ltd. located in China P C B Industrial Park, Guangde Economic Development District, Anhui Province. Established in October 2 0 1 3, our factory occupied 2000 square meters and employs 158 staff members, including over 7 professional engineers with more than 15 years of experience. The company's P C B products include 1- 32 layer boards, high Tg boards, thick copper boards, rigid-flex boards, high- frequency boards, hybrid dielectric laminated boards, buried via boards, metal-based boards, and halogen- free boards. High-precision P C B rapid prototyping is available, with bulk orders for single and double -sided boards delivered within 6 - 7 days, 4 - 8 layer boards within 9 - 20 days, 10 - 16 layer boards within 20 - 25 days, 16 - 32 layer boards within 25 - 45 days, H D I boards within 25 days, and double- sided prototyping deliverable as quickly as 24 hours. We are committed to providing high-quality products and professional services to global customers, and we have the capability to deliver orders of both large quantities and small batches. The surface treatment processes of our products are complete. The base material types include FR-1, 22F, CEM-1, CEM-3, FR-4 (with high Tg, halogen-free, etc.), high-frequency boards, and metal substrates. All product types have passed ISO9001, ISO14001, ISO45001, IATF16949 international quality management system certifications and UL safety certifications. Our sales network extends from inland areas to Southeast Asia and Europe and America. In the fierce market competition, we have always received high praise from customers.
