Double-Sided Red Lead-Free Soldered Board

Home / Products / PCB / Double-sided PCB / Double-Sided Red Lead-Free Soldered Board

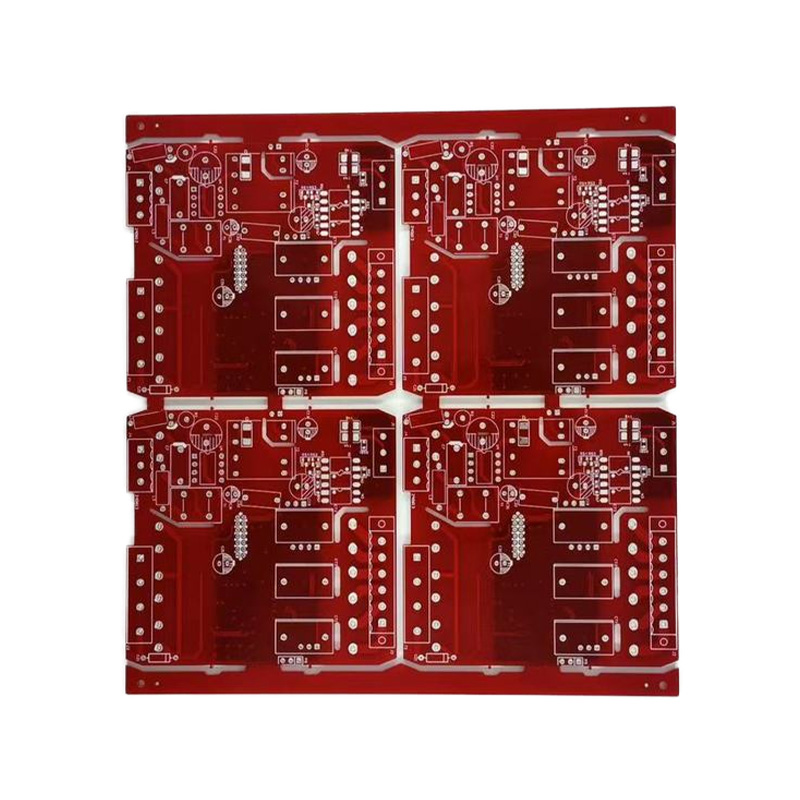

Double-Sided Red Lead-Free Soldered Board

Double-sided red lead-free soldered board, featuring a high-saturation bright red solder mask layer combined with matte lead-free soldering process. The vivid red appearance not only facilitates quick identification of the board type in the production line and avoids the risk of mixed assembly, but also gives the terminal product a prominent visual identifier, meeting the requirements of electronic devices that need to highlight the appearance recognition. The board body is made of bend-resistant FR-4 substrate, with a 1oz thick copper layer and reinforced edge design. It focuses on "efficient production error prevention + strong scene weather resistance", suitable for portable medical detection equipment, industrial control button panels, automotive electronic auxiliary modules, intelligent toy control boards, etc. It can not only improve the sorting and assembly efficiency of the production line, but also ensure the long-term stable operation of the equipment in mobile or vibrating environments. It is a high-quality PCB solution that combines production practicality and scene adaptability.

Contact Us
PREV：Double-Sided Greenened Gold Plate NEXT：Double-Sided Lead-Free Soldered Green PCB With Enhanced Oxidation Resistance
  • Specification
  • About Hongxin
  • Contact Us

Material

 FR-4, aluminium-based, ceramic, metal, copper-based, high-frequency, rigid-flex combined, halogen-free

Board thickness

 0.3 - 6mm

Copper thickness

 0.5oz - 5oz

Number of layers

 1 - 32 layers

Origin

 Anhui, China

Surface treatment

 Ordinary tin plating, lead-free tin plating, OSP, nickel/gold plating, blue tape, silver plating, tin plating

Minimum hole diameter

 0.25mm

Minimum line width

 3mil (0.075mm)

Minimum line spacing

 0.075mm

Thickness-to-diameter ratio of holes

 10:18
Anhui Hongxin Electronic Technology Co., Ltd. located in China P C B Industrial Park, Guangde Economic Development District, Anhui Province. Established in October 2 0 1 3, our factory occupied 2000 square meters and employs 158 staff members, including over 7 professional engineers with more than 15 years of experience. The company's P C B products include 1- 32 layer boards, high Tg boards, thick copper boards, rigid-flex boards, high- frequency boards, hybrid dielectric laminated boards, buried via boards, metal-based boards, and halogen- free boards. High-precision P C B rapid prototyping is available, with bulk orders for single and double -sided boards delivered within 6 - 7 days, 4 - 8 layer boards within 9 - 20 days, 10 - 16 layer boards within 20 - 25 days, 16 - 32 layer boards within 25 - 45 days, H D I boards within 25 days, and double- sided prototyping deliverable as quickly as 24 hours. We are committed to providing high-quality products and professional services to global customers, and we have the capability to deliver orders of both large quantities and small batches. The surface treatment processes of our products are complete. The base material types include FR-1, 22F, CEM-1, CEM-3, FR-4 (with high Tg, halogen-free, etc.), high-frequency boards, and metal substrates. All product types have passed ISO9001, ISO14001, ISO45001, IATF16949 international quality management system certifications and UL safety certifications. Our sales network extends from inland areas to Southeast Asia and Europe and America. In the fierce market competition, we have always received high praise from customers.
