Double-Sided Green Lead-Free Soldered Board

Home / Products / PCB / Double-sided PCB / Double-Sided Green Lead-Free Soldered Board

Double-Sided Green Lead-Free Soldered Board

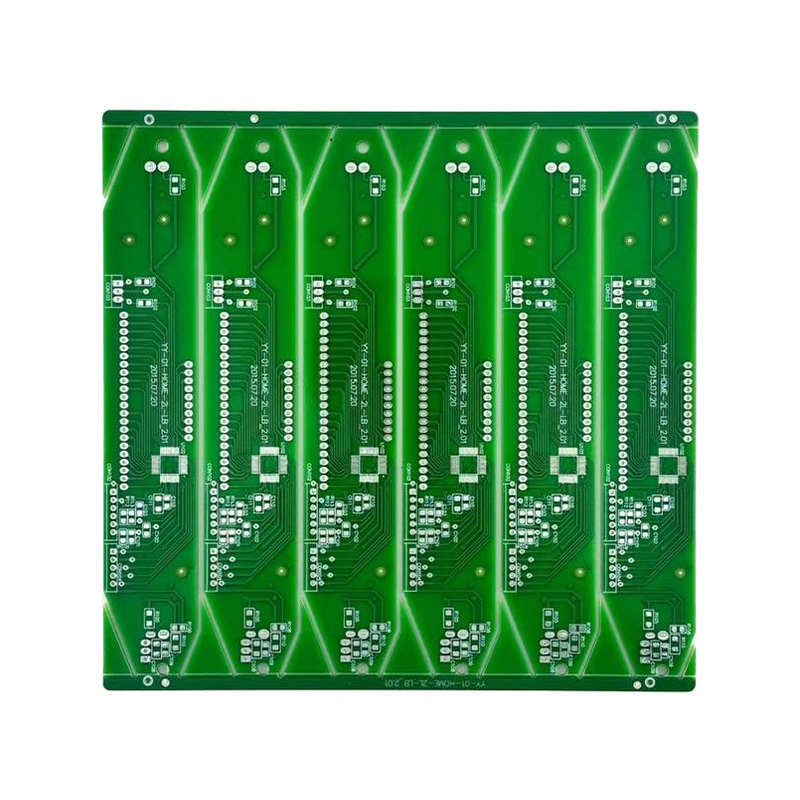

The double-sided green lead-free tin-plated board is made with an environmentally friendly lead-free soldering material formula, strictly complying with international environmental protection standards such as RoHS. It is produced in a green manner without any pollutant emissions. The double-sided circuit design is combined with a uniform and thick tin coating, significantly enhancing the shear strength of the solder joints. It is resistant to high-temperature aging and has excellent vibration resistance performance. It can effectively reduce the risk of false soldering and ensure stable and undamaged signal transmission. It also has the advantages of flexible wiring and controllable cost. It is widely used in scenarios with high requirements for environmental protection and reliability, such as automotive electronics, medical monitoring equipment, 5G communication modules, industrial control PLCs, and high-end instruments and meters. It is the preferred carrier that combines green manufacturing with high-performance requirements.

Contact Us
PREV：Double-Sided Green Lead-Free Tin-Plated Semi-Through Board NEXT：No next product
  • Specification
  • About Hongxin
  • Contact Us

Material

 FR-4, aluminium-based, ceramic, metal, copper-based, high-frequency, rigid-flex combined, halogen-free

Board thickness

 0.3 - 6mm

Copper thickness

 0.5oz - 5oz

Number of layers

 1 - 32 layers

Origin

 Anhui, China

Surface treatment

 Ordinary tin plating, lead-free tin plating, OSP, nickel/gold plating, blue tape, silver plating, tin plating

Minimum hole diameter

 0.25mm

Minimum line width

 3mil (0.075mm)

Minimum line spacing

 0.075mm

Ratio of board thickness to hole diameter

 10:27
Anhui Hongxin Electronic Technology Co., Ltd. located in China P C B Industrial Park, Guangde Economic Development District, Anhui Province. Established in October 2 0 1 3, our factory occupied 2000 square meters and employs 158 staff members, including over 7 professional engineers with more than 15 years of experience. The company's P C B products include 1- 32 layer boards, high Tg boards, thick copper boards, rigid-flex boards, high- frequency boards, hybrid dielectric laminated boards, buried via boards, metal-based boards, and halogen- free boards. High-precision P C B rapid prototyping is available, with bulk orders for single and double -sided boards delivered within 6 - 7 days, 4 - 8 layer boards within 9 - 20 days, 10 - 16 layer boards within 20 - 25 days, 16 - 32 layer boards within 25 - 45 days, H D I boards within 25 days, and double- sided prototyping deliverable as quickly as 24 hours. We are committed to providing high-quality products and professional services to global customers, and we have the capability to deliver orders of both large quantities and small batches. The surface treatment processes of our products are complete. The base material types include FR-1, 22F, CEM-1, CEM-3, FR-4 (with high Tg, halogen-free, etc.), high-frequency boards, and metal substrates. All product types have passed ISO9001, ISO14001, ISO45001, IATF16949 international quality management system certifications and UL safety certifications. Our sales network extends from inland areas to Southeast Asia and Europe and America. In the fierce market competition, we have always received high praise from customers.
