Double-Sided Black Lead-Free Tin Plating Board

Home / Products / PCB / Double-sided PCB / Double-Sided Black Lead-Free Tin Plating Board

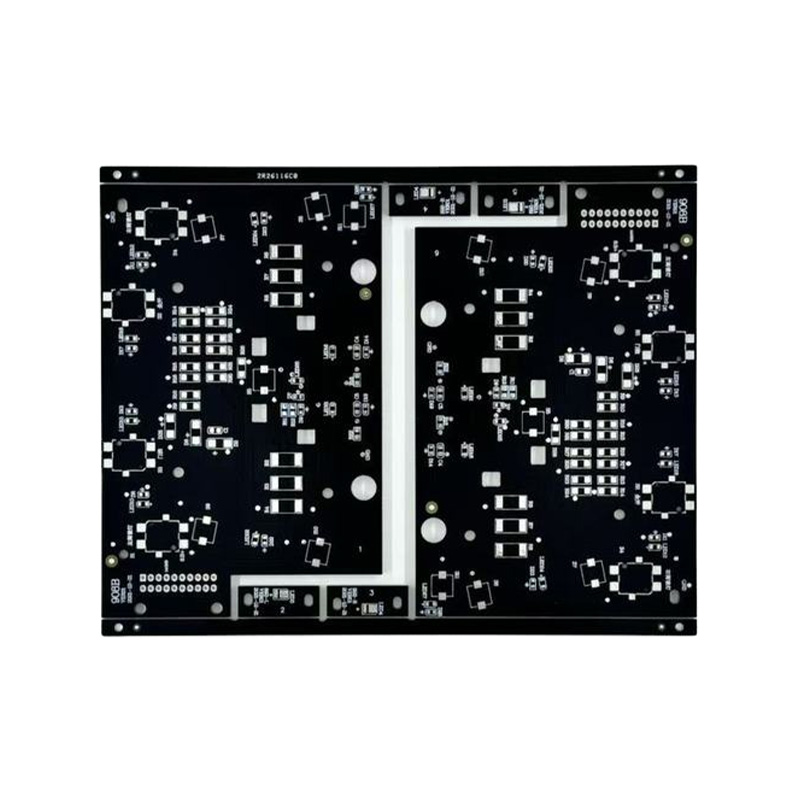

Double-Sided Black Lead-Free Tin Plating Board

Double-sided black lead-free soldered board, with matte black solder mask layer and lead-free soldering process: The soldering surface layer has the "low-temperature rapid immersion" characteristic, and can still stably solder in the 240℃ low-temperature welding environment, suitable for the fine assembly of heat-sensitive components; The black solder mask layer has a slight anti-slip texture, which is convenient for fixing the board during manual assembly on the production line, while covering the circuit details without leaving fingerprints, improving the appearance tidiness of the finished product. The board body is made of flame-retardant FR-4 substrate, and is equipped with a wide-width circuit design, suitable for the current-carrying requirements of large current components.

Contact Us
PREV：Double-Sided Green Lead-Free Tin-Plated Board NEXT：Double-Sided Green Lead-Free Solder Board
  • Specification
  • About Hongxin
  • Contact Us

Material

 FR-4, aluminium-based, ceramic, metal, copper-based, high-frequency, rigid-flex combined, halogen-free

Board thickness

 0.3 - 6mm

Copper thickness

 0.5oz - 5oz

Number of layers

 1 - 32 layers

Origin

 Anhui, China

Surface treatment

 Ordinary tin plating, lead-free tin plating, OSP, nickel/gold plating, blue tape, silver plating, tin plating

Minimum hole diameter

 0.25mm

Minimum line width

 3mil (0.075mm)

Minimum line spacing

 0.075mm

Thickness-to-diameter ratio of holes

 10:13
Anhui Hongxin Electronic Technology Co., Ltd. located in China P C B Industrial Park, Guangde Economic Development District, Anhui Province. Established in October 2 0 1 3, our factory occupied 2000 square meters and employs 158 staff members, including over 7 professional engineers with more than 15 years of experience. The company's P C B products include 1- 32 layer boards, high Tg boards, thick copper boards, rigid-flex boards, high- frequency boards, hybrid dielectric laminated boards, buried via boards, metal-based boards, and halogen- free boards. High-precision P C B rapid prototyping is available, with bulk orders for single and double -sided boards delivered within 6 - 7 days, 4 - 8 layer boards within 9 - 20 days, 10 - 16 layer boards within 20 - 25 days, 16 - 32 layer boards within 25 - 45 days, H D I boards within 25 days, and double- sided prototyping deliverable as quickly as 24 hours. We are committed to providing high-quality products and professional services to global customers, and we have the capability to deliver orders of both large quantities and small batches. The surface treatment processes of our products are complete. The base material types include FR-1, 22F, CEM-1, CEM-3, FR-4 (with high Tg, halogen-free, etc.), high-frequency boards, and metal substrates. All product types have passed ISO9001, ISO14001, ISO45001, IATF16949 international quality management system certifications and UL safety certifications. Our sales network extends from inland areas to Southeast Asia and Europe and America. In the fierce market competition, we have always received high praise from customers.
