Double-Sided Red OSP Board

Home / Products / PCB / Double-sided PCB / Double-Sided Red OSP Board

Double-Sided Red OSP Board

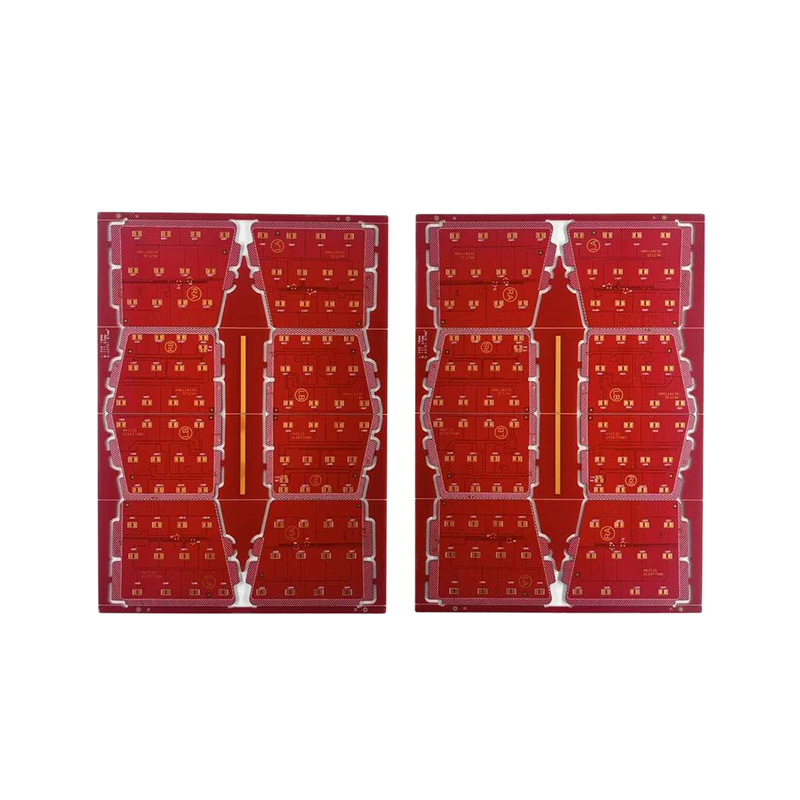

Double-sided red OSP board, using the anti-oxidation (OSP) process, forms an extremely thin protective film on the copper pads, providing excellent flatness and consistency for precise soldering of ultra-small gap components and lead-free processes. The distinct red solder mask not only gives the product a unique market recognition, but also facilitates optical positioning and quality inspection during the production process. This product is an ideal choice for high-end network equipment, miniaturized consumer electronics, precision instruments, and digital circuits that require both fine soldering and excellent appearance quality.

Contact Us
PREV：Durable Double-Layer Green Lead-Free PCB NEXT：High-Reliability Lead-Free PCB (Double-Sided)
  • Specification
  • About Hongxin
  • Contact Us

Material

 FR-4, aluminium-based, ceramic, metal, copper-based, high-frequency, rigid-flex combined, halogen-free

Board thickness

 0.3 - 6mm

Copper thickness

 0.5oz - 5oz

Number of layers

 1 - 32 layers

Origin

 Anhui, China

Surface treatment

 Ordinary tin plating, lead-free tin plating, OSP, nickel/gold plating, blue tape, silver plating, tin plating

Minimum hole diameter

 0.25mm

Minimum line width

 3mil (0.075mm)

Minimum line spacing

 0.075mm

Ratio of board thickness to hole diameter

 10:22
Anhui Hongxin Electronic Technology Co., Ltd. located in China P C B Industrial Park, Guangde Economic Development District, Anhui Province. Established in October 2 0 1 3, our factory occupied 2000 square meters and employs 158 staff members, including over 7 professional engineers with more than 15 years of experience. The company's P C B products include 1- 32 layer boards, high Tg boards, thick copper boards, rigid-flex boards, high- frequency boards, hybrid dielectric laminated boards, buried via boards, metal-based boards, and halogen- free boards. High-precision P C B rapid prototyping is available, with bulk orders for single and double -sided boards delivered within 6 - 7 days, 4 - 8 layer boards within 9 - 20 days, 10 - 16 layer boards within 20 - 25 days, 16 - 32 layer boards within 25 - 45 days, H D I boards within 25 days, and double- sided prototyping deliverable as quickly as 24 hours. We are committed to providing high-quality products and professional services to global customers, and we have the capability to deliver orders of both large quantities and small batches. The surface treatment processes of our products are complete. The base material types include FR-1, 22F, CEM-1, CEM-3, FR-4 (with high Tg, halogen-free, etc.), high-frequency boards, and metal substrates. All product types have passed ISO9001, ISO14001, ISO45001, IATF16949 international quality management system certifications and UL safety certifications. Our sales network extends from inland areas to Southeast Asia and Europe and America. In the fierce market competition, we have always received high praise from customers.

Recommended Products

About
Anhui Hongxin Electronic Technology Co., Ltd.
Anhui Hongxin Electronic Technology Co., Ltd.
Anhui Hongxin Electronic Technology Co., Ltd. located in China P C B Industrial Park, Guangde Economic Development District, Anhui Province. Established in October 2 0 1 3, our factory occupied 8, 413 square meters and employs 158 staff members, including over 7 professional engineers with more than 15 years of experience. The company's P C B products include 1- 32 layer boards, high Tg boards, thick copper boards, rigid-flex boards, high- frequency boards, hybrid dielectric laminated boards, buried via boards, metal-based boards, and halogen- free boards. High-precision P C B rapid prototyping is available, with bulk orders for single and double -sided boards delivered within 6 - 7 days, 4 - 8 layer boards within 9 - 20 days, 10 - 16 layer boards within 20 - 25 days, 16 - 32 layer boards within 25 - 45 days, H D I boards within 25 days, and double- sided prototyping deliverable as quickly as 24 hours. We are committed to providing high-quality products and professional services to global customers, and we have the capability to deliver orders of both large quantities and small batches. The surface treatment processes of our products are complete. The base material types include FR-1, 22F, CEM-1, CEM-3, FR-4 (with high Tg, halogen-free, etc.), high-frequency boards, and metal substrates. All product types have passed ISO9001, ISO14001, ISO45001, IATF16949 international quality management system certifications and UL safety certifications. Our sales network extends from inland areas to Southeast Asia and Europe and America. In the fierce market competition, we have always received high praise from customers.
