Durable Double-Layer Green Lead-Free PCB

Home / Products / PCB / Double-sided PCB / Durable Double-Layer Green Lead-Free PCB

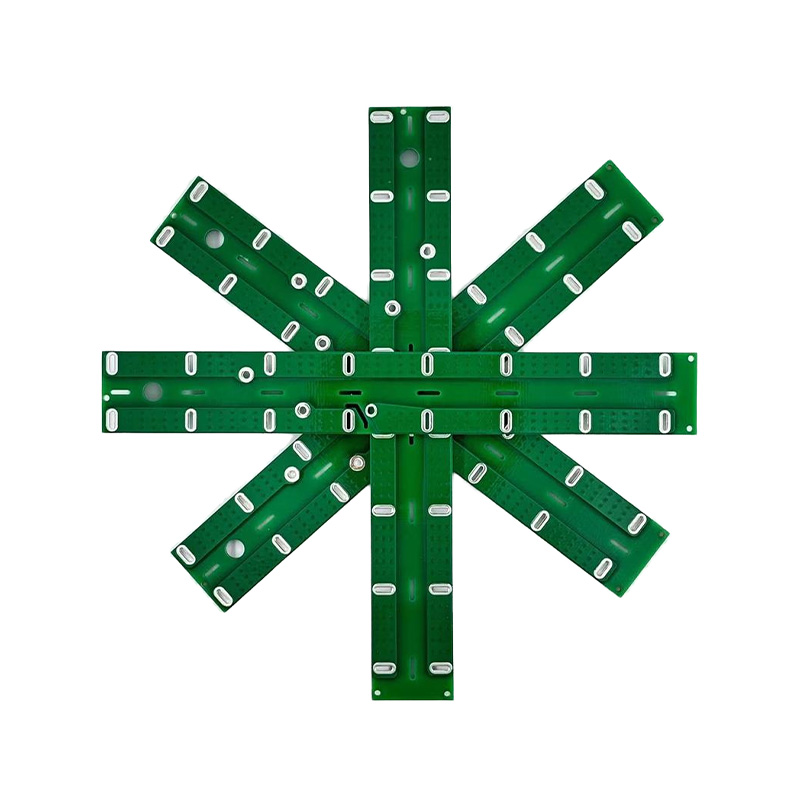

Durable Double-Layer Green Lead-Free PCB

Double-sided green lead-free tin-plated board, with FR-4 base material selected for the board body, and an optimized copper foil layout for efficient heat dissipation, which can quickly disperse the heat generated by components, preventing performance degradation caused by high temperatures. The edges adopt precise V-CUT board splitting design, resulting in no burrs or warping after splitting, suitable for the batch assembly requirements of small and medium-sized electronic modules. The circuit conduction stability is excellent. The core advantages focus on "high-speed production compatibility + efficient heat dissipation protection + environmentally friendly and durable", applicable to scenarios such as smart home control boards, industrial sensor interface boards, automotive low-voltage modules, and batch consumer electronic power modules, etc. It is a cost-effective PCB solution that balances production efficiency, usage stability, and environmental compliance.

Contact Us
PREV：Double-Sided Green Lead-Free Soldered PCB For Power & Automotive Electronics NEXT：Double-Sided Red OSP Board
  • Specification
  • About Hongxin
  • Contact Us

Material

 FR-4, aluminium-based, ceramic, metal, copper-based, high-frequency, rigid-flex combined, halogen-free

Board thickness

 0.3 - 6mm

Copper thickness

 0.5oz - 5oz

Number of layers

 1 - 32 layers

Origin

 Anhui, China

Surface treatment

 Ordinary tin plating, lead-free tin plating, OSP, nickel/gold plating, blue tape, silver plating, tin plating

Minimum hole diameter

 0.25mm

Minimum line width

 3mil (0.075mm)

Minimum line spacing

 0.075mm

Ratio of board thickness to hole diameter

 10:21
Anhui Hongxin Electronic Technology Co., Ltd. located in China P C B Industrial Park, Guangde Economic Development District, Anhui Province. Established in October 2 0 1 3, our factory occupied 2000 square meters and employs 158 staff members, including over 7 professional engineers with more than 15 years of experience. The company's P C B products include 1- 32 layer boards, high Tg boards, thick copper boards, rigid-flex boards, high- frequency boards, hybrid dielectric laminated boards, buried via boards, metal-based boards, and halogen- free boards. High-precision P C B rapid prototyping is available, with bulk orders for single and double -sided boards delivered within 6 - 7 days, 4 - 8 layer boards within 9 - 20 days, 10 - 16 layer boards within 20 - 25 days, 16 - 32 layer boards within 25 - 45 days, H D I boards within 25 days, and double- sided prototyping deliverable as quickly as 24 hours. We are committed to providing high-quality products and professional services to global customers, and we have the capability to deliver orders of both large quantities and small batches. The surface treatment processes of our products are complete. The base material types include FR-1, 22F, CEM-1, CEM-3, FR-4 (with high Tg, halogen-free, etc.), high-frequency boards, and metal substrates. All product types have passed ISO9001, ISO14001, ISO45001, IATF16949 international quality management system certifications and UL safety certifications. Our sales network extends from inland areas to Southeast Asia and Europe and America. In the fierce market competition, we have always received high praise from customers.
