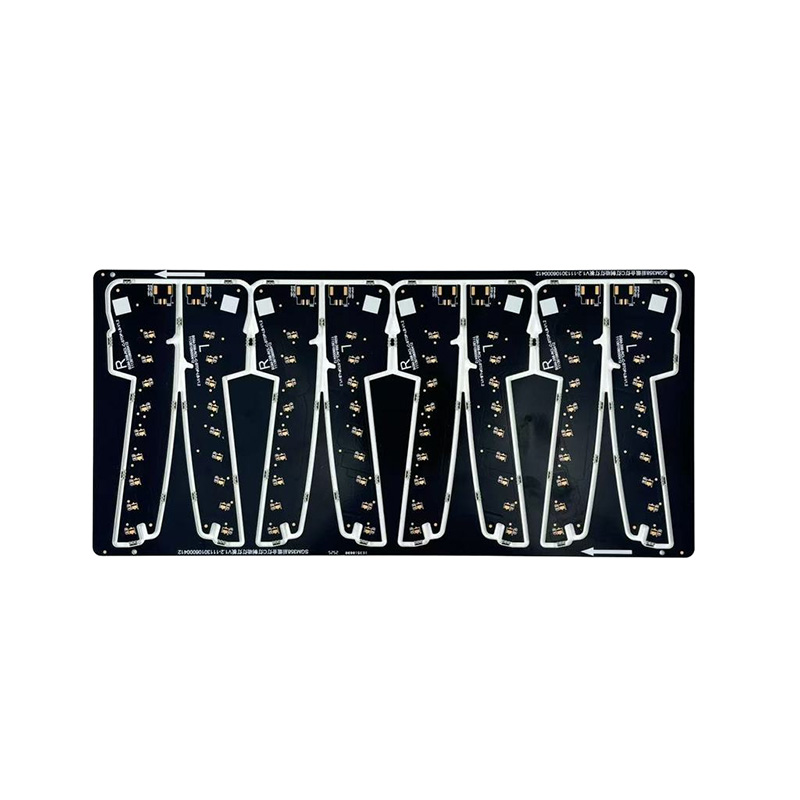

Single-Sided OSP PCB Board

Single-sided OSP PCBs utilize an organic solderability film (OSP) surface treatment, which is environmentally friendly and non-toxic. They offer highly flat pads, making them suitable for high-precision soldering and offering excellent value for money. Using an environmentally friendly process, these products comply with RoHS standards and are suitable for export. The OSP film protects the copper surface, enhancing pad solderability and reducing cold solder joints. The single-sided design and OSP treatment are economical and practical, with fast delivery. These products are suitable for applications in consumer electronics (such as remote controls and small appliances), LED modules, power adapters, and other environmentally and cost-sensitive applications.

Contact Us
PREV：Single-Sided Tin-Spraying PCB Board NEXT：No next product
  • Specification
  • About Hongxin
  • Contact Us

Material

 Aluminum

Supplier

 International

Thickness

 1.0mm

Thermal Conductivity

 2W

Finished Copper Thickness

 36µm

Solder Mask

 White

Texture

 Black

Surface Finish

 OSP

Finished Dimensions

 130.4mm x 186mm
Anhui Hongxin Electronic Technology Co., Ltd. located in China P C B Industrial Park, Guangde Economic Development District, Anhui Province. Established in October 2 0 1 3, our factory occupied 2000 square meters and employs 158 staff members, including over 7 professional engineers with more than 15 years of experience. The company's P C B products include 1- 32 layer boards, high Tg boards, thick copper boards, rigid-flex boards, high- frequency boards, hybrid dielectric laminated boards, buried via boards, metal-based boards, and halogen- free boards. High-precision P C B rapid prototyping is available, with bulk orders for single and double -sided boards delivered within 6 - 7 days, 4 - 8 layer boards within 9 - 20 days, 10 - 16 layer boards within 20 - 25 days, 16 - 32 layer boards within 25 - 45 days, H D I boards within 25 days, and double- sided prototyping deliverable as quickly as 24 hours. We are committed to providing high-quality products and professional services to global customers, and we have the capability to deliver orders of both large quantities and small batches. The surface treatment processes of our products are complete. The base material types include FR-1, 22F, CEM-1, CEM-3, FR-4 (with high Tg, halogen-free, etc.), high-frequency boards, and metal substrates. All product types have passed ISO9001, ISO14001, ISO45001, IATF16949 international quality management system certifications and UL safety certifications. Our sales network extends from inland areas to Southeast Asia and Europe and America. In the fierce market competition, we have always received high praise from customers.
