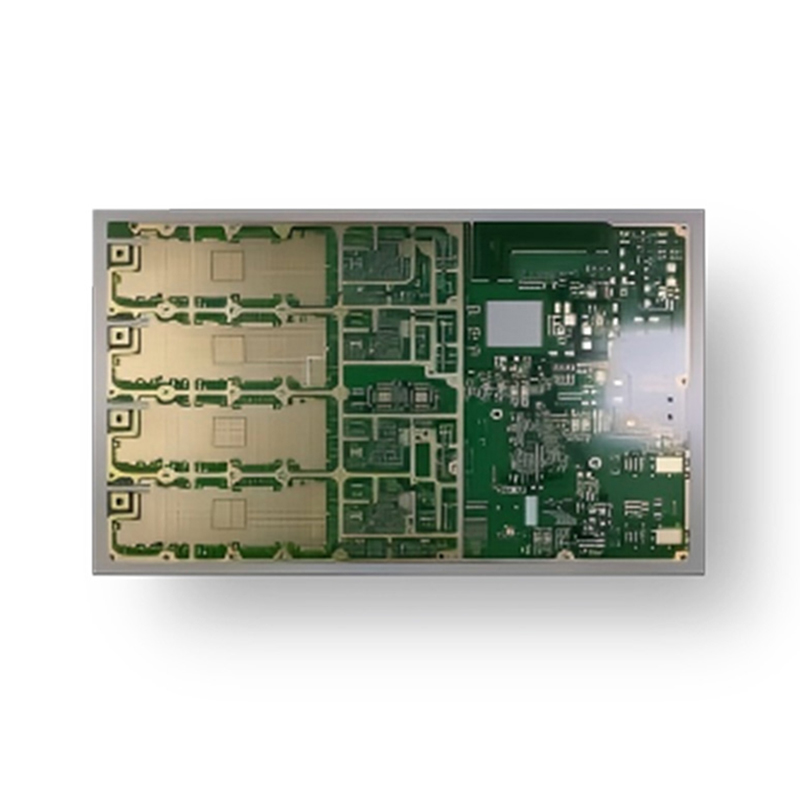

10-Layer Embedded Copper-Based Amplifier Board

Home / Products / PCB / Copper Core PCB / 10-Layer Embedded Copper-Based Amplifier Board

10-Layer Embedded Copper-Based Amplifier Board

Copper-based PCBs, built on highly thermally conductive pure copper or copper alloys, offer excellent thermal conductivity (up to 380W/mK), rapidly dissipating heat generated by high-density electronic components and significantly improving system stability. These boards are particularly well-suited for applications requiring demanding heat dissipation, such as high-power LEDs, laser devices, power conversion modules, and high-frequency communications equipment. Their metal substrate also provides electromagnetic shielding, reducing signal interference. Copper-based PCBs support fine-grained circuit processing and maintain excellent performance in high-temperature and high-humidity environments, making them the ultimate solution for addressing heat dissipation and reliability challenges in high-end power and automotive electronics.

Contact Us
PREV：No previous product NEXT：No next product
  • Specification
  • About Hongxin
  • Contact Us

Material

 Copper

Board Thickness

 0.3-6mm

Copper Thickness

 0.5oz-5oz

Layers

 1-32

Place of Origin

 Anhui, China

Surface Finish

 Standard HASL, Lead-Free HASL, OSP, Immersion Nickel/Gold, Blue Glue, Immersion Silver, Immersion Tin

Minimum Aperture

 0.25mm

Minimum Line Width

 3mil (0.075mm)

Minimum Line Spacing

 0.075mm

Board Thickness-to-Aperture Ratio

 10:1
Anhui Hongxin Electronic Technology Co., Ltd. located in China P C B Industrial Park, Guangde Economic Development District, Anhui Province. Established in October 2 0 1 3, our factory occupied 2000 square meters and employs 158 staff members, including over 7 professional engineers with more than 15 years of experience. The company's P C B products include 1- 32 layer boards, high Tg boards, thick copper boards, rigid-flex boards, high- frequency boards, hybrid dielectric laminated boards, buried via boards, metal-based boards, and halogen- free boards. High-precision P C B rapid prototyping is available, with bulk orders for single and double -sided boards delivered within 6 - 7 days, 4 - 8 layer boards within 9 - 20 days, 10 - 16 layer boards within 20 - 25 days, 16 - 32 layer boards within 25 - 45 days, H D I boards within 25 days, and double- sided prototyping deliverable as quickly as 24 hours. We are committed to providing high-quality products and professional services to global customers, and we have the capability to deliver orders of both large quantities and small batches. The surface treatment processes of our products are complete. The base material types include FR-1, 22F, CEM-1, CEM-3, FR-4 (with high Tg, halogen-free, etc.), high-frequency boards, and metal substrates. All product types have passed ISO9001, ISO14001, ISO45001, IATF16949 international quality management system certifications and UL safety certifications. Our sales network extends from inland areas to Southeast Asia and Europe and America. In the fierce market competition, we have always received high praise from customers.
