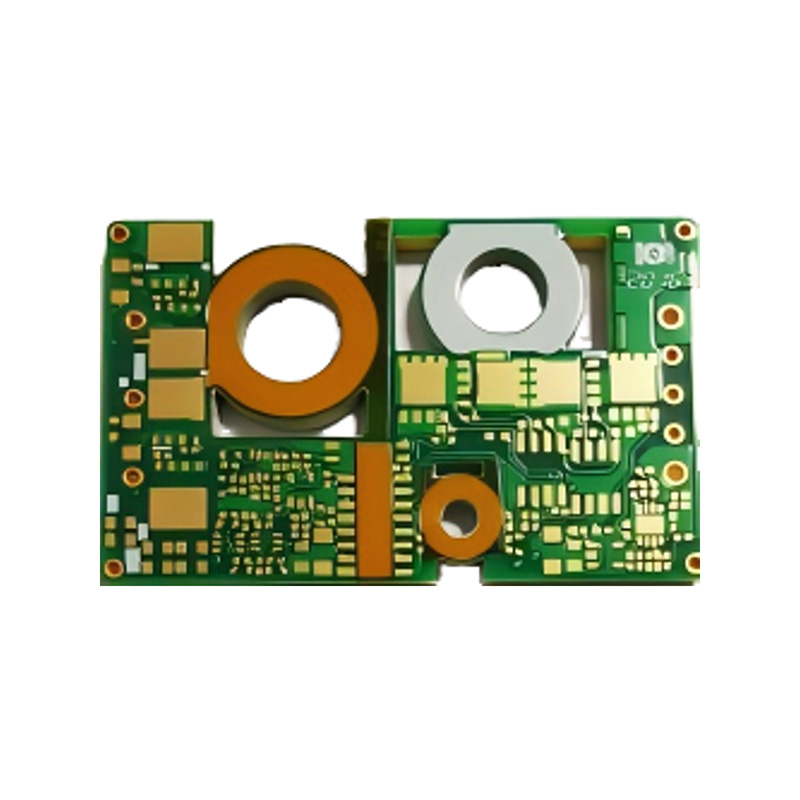

14-Layer Copper

Home / Products / PCB / Thick Copper PCB / 14-Layer Copper

14-Layer Copper

Thick Copper PCBs utilize ultra-thick copper foil ranging from 3oz to 20oz, boasting exceptional current-carrying capacity (over 100A) and high-temperature resistance (TG value ≥ 180°C), optimized for high-power electronic devices. Specialized etching and electroplating processes enable high-precision circuit control, while optimized heat dissipation effectively reduces impedance heat loss. They are widely used in high-power applications such as new energy inverters, power conversion modules, industrial motor drives, and electric vehicle charging stations. The board maintains exceptional stability and durability in high-voltage and high-current environments, significantly improving energy conversion efficiency. It is a core component for efficient energy transmission in solar power generation systems, power electronics, and heavy machinery.

Contact Us
PREV：No previous product NEXT：No next product
  • Specification
  • About Hongxin
  • Contact Us

Material

 Thick Copper

Board Thickness

 0.3-6mm

Copper Thickness

 3-20oz

Layers

 1-32

Place of Origin

 Anhui, China

Surface Finish

 Standard HASL, Lead-Free HASL, OSP, Immersion Nickel/Gold, Blue Glue, Immersion Silver, Immersion Tin

Minimum Aperture

 0.25mm

Minimum Line Width

 3mil (0.075mm)

Minimum Line Spacing

 0.075mm

Board Thickness

 Aperture Ratio: 10:1
Anhui Hongxin Electronic Technology Co., Ltd. located in China P C B Industrial Park, Guangde Economic Development District, Anhui Province. Established in October 2 0 1 3, our factory occupied 2000 square meters and employs 158 staff members, including over 7 professional engineers with more than 15 years of experience. The company's P C B products include 1- 32 layer boards, high Tg boards, thick copper boards, rigid-flex boards, high- frequency boards, hybrid dielectric laminated boards, buried via boards, metal-based boards, and halogen- free boards. High-precision P C B rapid prototyping is available, with bulk orders for single and double -sided boards delivered within 6 - 7 days, 4 - 8 layer boards within 9 - 20 days, 10 - 16 layer boards within 20 - 25 days, 16 - 32 layer boards within 25 - 45 days, H D I boards within 25 days, and double- sided prototyping deliverable as quickly as 24 hours. We are committed to providing high-quality products and professional services to global customers, and we have the capability to deliver orders of both large quantities and small batches. The surface treatment processes of our products are complete. The base material types include FR-1, 22F, CEM-1, CEM-3, FR-4 (with high Tg, halogen-free, etc.), high-frequency boards, and metal substrates. All product types have passed ISO9001, ISO14001, ISO45001, IATF16949 international quality management system certifications and UL safety certifications. Our sales network extends from inland areas to Southeast Asia and Europe and America. In the fierce market competition, we have always received high praise from customers.
