Four-Layer Tin-Sprayed PCB

Home / Products / PCB / Multilayer PCB / Four-Layer Tin-Sprayed PCB

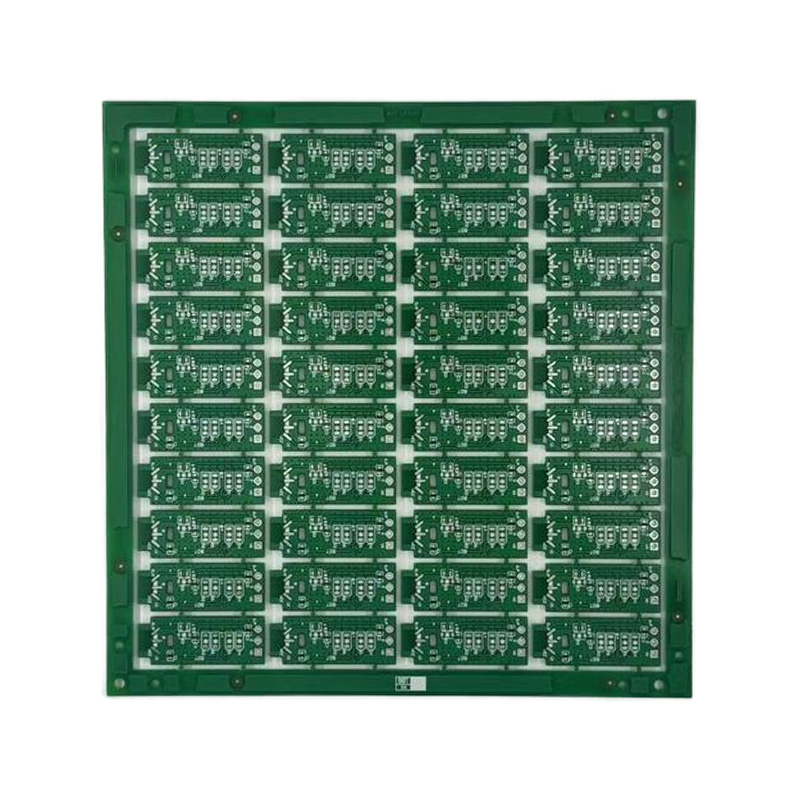

Four-Layer Tin-Sprayed PCB

This four-layer tin-spray PCB utilizes an FR-4 substrate and a hot-air leveling tin-spray process, achieving a cost-effective multi-layer interconnect solution within a four-layer circuit structure, combining excellent conductivity and solderability. Its precise stack-up design and built-in power and ground planes effectively reduce signal interference and enhance circuit stability, with an operating temperature range of -50°C to 130°C. The tin-spray surface treatment provides excellent oxidation resistance and pad flatness, supporting both SMT and wave soldering processes. It is widely used in industrial control equipment, smart home systems, automotive electronic modules, and consumer electronics. While ensuring signal integrity, this board significantly reduces production costs, making it an ideal choice for medium-complexity electronic devices such as LED control drivers and power management modules. It is particularly well-suited for mass production projects that balance performance and budget.

Contact Us
PREV：No previous product NEXT：6-Layer Gold-Plated Board, Line Width And Spacing Of 3/3, BGA, Half-Hole Technology
  • Specification
  • About Hongxin
  • Contact Us

Materials

 FR-4, aluminum, ceramic, metal, copper, high-frequency, rigid-flex, halogen-free

Board thickness

 0.3-6mm

Copper thickness

 0.5oz-5oz

Layers

 1-32

Place of origin

 Anhui, China

Surface finish

 Standard HASL, lead-free HASL, OSP, immersion nickel/gold, blue glue, immersion silver, immersion tin

Minimum aperture

 0.25mm

Minimum trace width

 3mil (0.075mm)

Minimum trace spacing

 0.075mm

Board thickness to aperture ratio

 10:1
Anhui Hongxin Electronic Technology Co., Ltd. located in China P C B Industrial Park, Guangde Economic Development District, Anhui Province. Established in October 2 0 1 3, our factory occupied 2000 square meters and employs 158 staff members, including over 7 professional engineers with more than 15 years of experience. The company's P C B products include 1- 32 layer boards, high Tg boards, thick copper boards, rigid-flex boards, high- frequency boards, hybrid dielectric laminated boards, buried via boards, metal-based boards, and halogen- free boards. High-precision P C B rapid prototyping is available, with bulk orders for single and double -sided boards delivered within 6 - 7 days, 4 - 8 layer boards within 9 - 20 days, 10 - 16 layer boards within 20 - 25 days, 16 - 32 layer boards within 25 - 45 days, H D I boards within 25 days, and double- sided prototyping deliverable as quickly as 24 hours. We are committed to providing high-quality products and professional services to global customers, and we have the capability to deliver orders of both large quantities and small batches. The surface treatment processes of our products are complete. The base material types include FR-1, 22F, CEM-1, CEM-3, FR-4 (with high Tg, halogen-free, etc.), high-frequency boards, and metal substrates. All product types have passed ISO9001, ISO14001, ISO45001, IATF16949 international quality management system certifications and UL safety certifications. Our sales network extends from inland areas to Southeast Asia and Europe and America. In the fierce market competition, we have always received high praise from customers.
