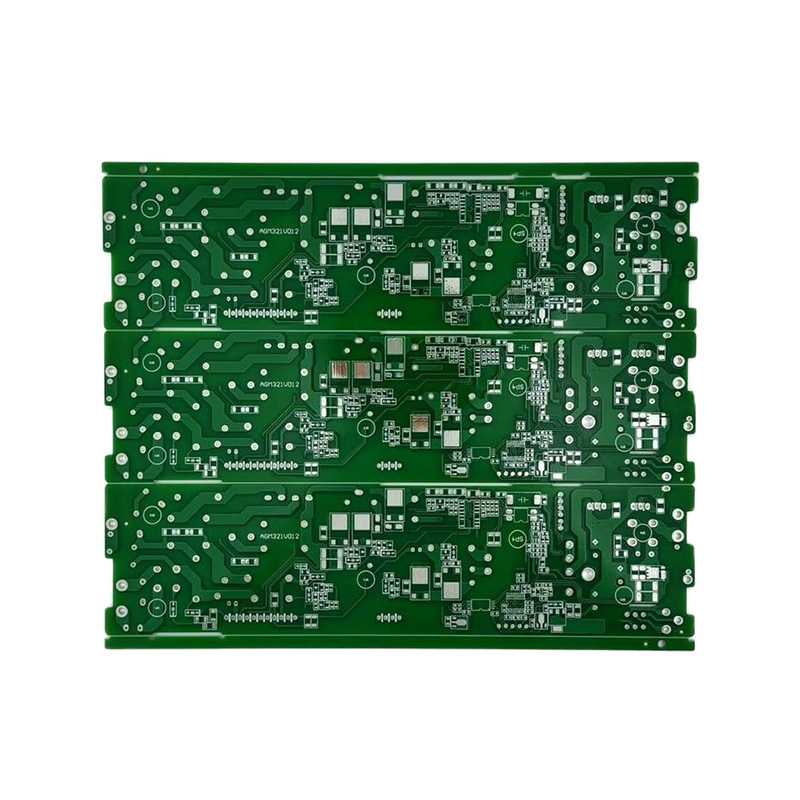

Double-Sided High-Speed Board

High-speed PCB boards utilize ultra-low-loss substrates and precision impedance control technology, designed specifically for GHz-level high-speed signal transmission. They effectively reduce signal attenuation and crosstalk, ensuring data integrity and transmission stability. Through strict dielectric constant consistency control (Dk±0.05) and ultra-fine line processing (minimum line width/spacing of 3 mils), they meet the requirements of high-speed protocols such as PCIe 5.0 and DDR5, and are widely used in cutting-edge fields such as AI servers, data center switches, high-end graphics cards, and 5G communication equipment. Combined with an optimized stack-up design and differential pair wiring, this board can achieve high-speed signal transmission exceeding 28Gbps. It is a core carrier for processing large data traffic and ultra-high-frequency operations, and is particularly suitable for high-performance computing scenarios that are sensitive to signal timing and power consumption.

Contact Us
PREV：No previous product NEXT：No next product
  • Specification
  • About Hongxin
  • Contact Us

Materials

 FR-4, aluminum, ceramic, metal, copper, high-frequency, rigid-flex, halogen-free

Board thickness

 0.3-6mm

Copper thickness

 0.5oz-5oz

Layers

 1-32

Place of origin

 Anhui, China

Surface finish

 Standard HASL, lead-free HASL, OSP, immersion nickel/gold, blue glue, immersion silver, immersion tin

Minimum aperture

 0.25mm

Minimum trace width

 3mil (0.075mm)

Minimum trace spacing

 0.075mm

Board thickness to aperture ratio

 10:1
